CLI Tutorial

In this tutorial, you will learn how to use the Fiammad Command Line Interface(CLI) to send requests related to zkpverify.

Preparations

Before you can use CLI, you need to prepare the proof for testing, and a simple way to do this is to use the fiamma git repository provides some sample prover code for generating test proof files, which can be used to easily generate test proof public_input and vk.

Note! Fiamma currently supports zkp authentication with a variety of proofs, the list of supported proofs is shown in Support ProofSystem. For the bitvm proof system , there is currently no open source specific prover, we give a sample generated by our test, soon we will open source bitvm proof system

1. Clone Fiamma Git repository

git clone https://github.com/fiamma-chain/fiamma

cd fiamma

git checkout <release-version>

ZKPVerify Module

1. Send your proof to Fiamma network

Submit BitVM proof

The BitVM proof need the proof file, public input file and verifying key file. You may set gas and fees.

fiammad tx zkpverify submit-proof \
  --from <account_name> --chain-id <chain_id>  \
  --gas <gas> --fees <fees> \
  --node <node> \
  --keyring-backend test \
  <namespace> \
  <proof_system> \
  <proof> \
  <public_input> \
  <vk>
  <data_location>

The current Fiamma network chain-id is fiamma-testnet-1, the namespace is test-namespace, the data_location should be FIAMMA , the proof system is GROTH16_BN254_BITVM or FFPLONK_BN254_BITVM and the node is https://testnet-rpc.fiammachain.io.

Example Proof system use GROTH16_BN254_BITVM.

Send BitVM proof:

fiammad tx zkpverify submit-proof \
  --from alice --chain-id fiamma-testnet-1  \
  --gas 20000000 --fees 2000ufia \
  --node https://testnet-rpc.fiammachain.io \
  --keyring-backend test \
  "test-namespace" \
  "GROTH16_BN254_BITVM" \
  ./prover_examples/bitvm/proof.bitvm \
  ./prover_examples/bitvm/public_input.bitvm \
  ./prover_examples/bitvm/vk.bitvm
  "FIAMMA"

2. Get Proof id

When you have finished submitting your proof, there are two ways to query the proof id of the proof you have submitted.

• Get Proof Id by tx event

When you submit a proof, you will receive a transaction hash. Typically, if the transaction is successful, by querying the transaction details using the hash, you can retrieve an event list where you can filter out the proofId.

fiammad query tx 65C110AE8E0624AC34CC1F7E36E253B3437B28E008433AE499DEF40D770A1915 --node https://testnet-rpc.fiammachain.io

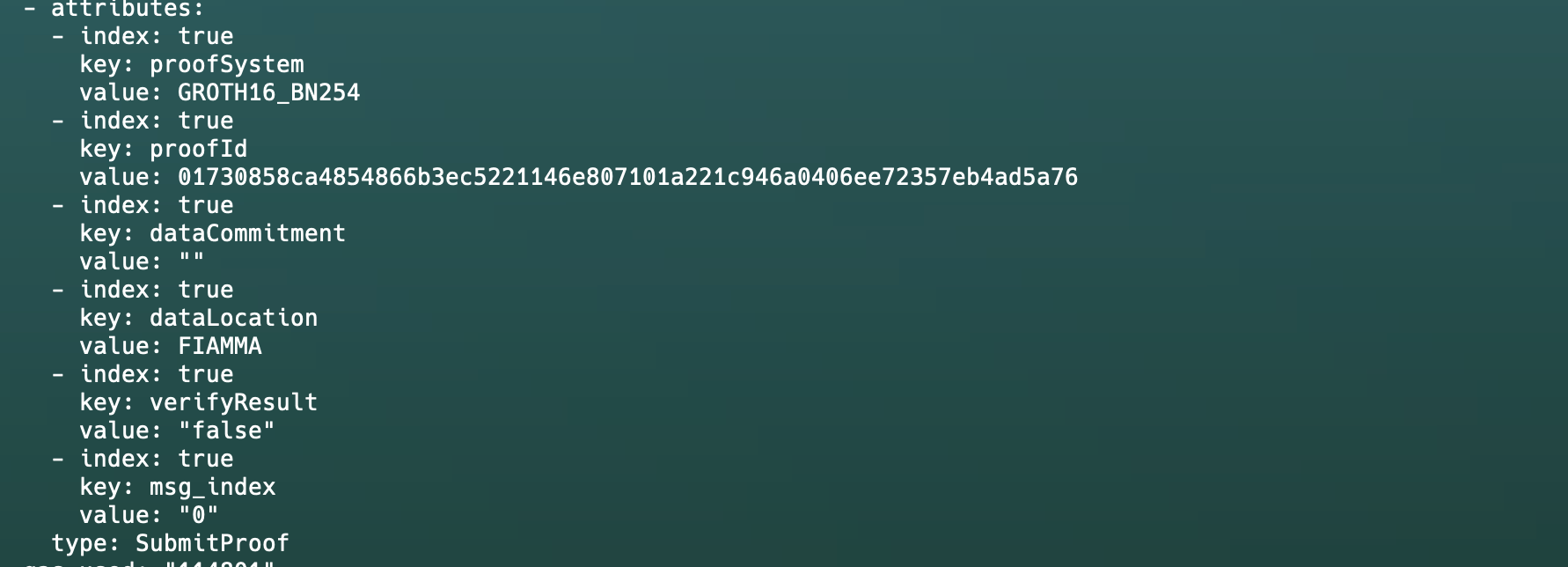

SubmitProof event

• Get Proof Id by Manual/Code Calculation

The proof id can be calculated from sha256sum of proof inputs using shell. It Concatenate the proof system, proof, public input,and vk.

# the proof input files directory is fiamma/prover_examples/bitvm
: ${PROOF_FILE:=proof.bitvm}
: ${PUBLIC_INPUT_FILE:=public_input.bitvm}
: ${VK_FILE:=vk.bitvm}
: ${PROOF_SYSTEM:="GROTH16_BN254_BITVM"}
: ${NAMESPACE:="test-namespace"}
: ${PROOF_SYSTEM:="GROTH16_BN254_BITVM"}

NEW_NAMESPACE=$(echo -n $NAMESPACE | xxd -p)
NEW_PROOF_SYSTEM=$(echo -n $PROOF_SYSTEM | xxd -p)
NEW_PROOF=$(xxd -p -c 256 $PROOF_FILE | tr -d '\n')
NEW_PUBLIC_INPUT=$(xxd -p -c 256 $PUBLIC_INPUT_FILE | tr -d '\n')
NEW_VK=$(xxd -p -c 256 $VK_FILE | tr -d '\n')

# Concatenate the namespace, proof system, proof, public input, and vk
allDataHex="${NEW_NAMESPACE}${NEW_PROOF_SYSTEM}${NEW_PROOF}${NEW_PUBLIC_INPUT}${NEW_VK}"

echo -n "$allDataHex" | xxd -r -p | sha256sum | awk '{print $1}'

3. Submit community verification to Fiamma network

The community verification need an proof id and verification result.

submit community verification:

fiammad tx zkpverify submit-community-verification \
  --from <account_name> --chain-id <chain_id>  \
  --gas <gas> --fees <fees> \
  --node <node> \
  --keyring-backend test \
  <proof_id> \
  <result>

Example You may use the above shell to calculate a proof id, and use fiammad command to sumbit community verification with a verification result.

fiammad tx zkpverify submit-community-verification \
  --from alice --chain-id fiamma-testnet-1  \
  --gas 20000000 --fees 2000ufia \
  --node https://testnet-rpc.fiammachain.io \
  --keyring-backend test \
  1776686b821785672155f4f34a0cf0d088e721e3ec5ff32709a7cec1b5a3b669 \
  true

In addition, we provide shell scripts to make it easier to send these commands. The parameter accepted by the script is account.

// Assuming you are currently in the root directory at fiamma
./scripts/cli/submit_community_verification_bitvm.sh alice

4. Get proof data by proof id from Fiamma network

You can query proof data stored in the fiamma network by proof id.

fiammad query zkpverify get-proof-data \
  --chain-id <chain_id>  \
  --node <node> \
  <proof_id>

Example

fiammad query zkpverify get-proof-data \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io \
  1776686b821785672155f4f34a0cf0d088e721e3ec5ff32709a7cec1b5a3b669

5. Get bitvm chanllenge data by proof id from Fiamma network

You can query bitVM chanllenge data stored in the fiamma network by proof id.

fiammad query zkpverify get-bitvm-challenge-data \
  --chain-id <chain_id>  \
  --node <node> \
  <proof_id>

Example

fiammad query zkpverify get-bitvm-challenge-data \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io \
  1776686b821785672155f4f34a0cf0d088e721e3ec5ff32709a7cec1b5a3b669

6. Get verify result from Fiamma network

You can query proof verify status stored in the fiamma network by proof id.

fiammad query zkpverify get-verify-result \
  --chain-id <chain_id>  \
  --node <node> \
  <proof_id>

Example

fiammad query zkpverify get-verify-result \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io \
  1776686b821785672155f4f34a0cf0d088e721e3ec5ff32709a7cec1b5a3b669

7. Get verify result by namespace from Fiamma network

You can query proof verify status stored in the fiamma network by namespace.

fiammad query zkpverify get-verify-results-by-namespace \
  --chain-id <chain_id>  \
  --node <node> \
  <namespace>

Example

fiammad query zkpverify get-verify-result \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io \
  "test-namespace"

8. Get pending proofs from Fiamma network

You can queries a list of pending proof verification items in the fiamma network.

fiammad query zkpverify pending-proof \
  --chain-id <chain_id>  \
  --node <node>

Example

fiammad query zkpverify pending-proof \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io

9. Get pending proofs by namespace from Fiamma network

You can queries a list of pending proof verification items by namespace in the fiamma network.

fiammad query zkpverify pending-proof-by-namespace \
  --chain-id <chain_id>  \
  --node <node>
  <namespace>

Example

fiammad query zkpverify pending-proof-by-namespace \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io
  "test-namespace"

BitVMStaker Module

1. Create a new staker account by staker address

You can create a new staker account by staker address in the fiamma network.

fiammad tx bitvmstaker create-staker \
  <staker_address> \
  --from <account_name> \
  --keyring-backend test \
  --chain-id <chain_id>  \
  --node <node>

Example

fiammad tx bitvmstaker create-staker \
  fiammavaloper1f9t28umy70d8flvms23042ydyky7wvfmalf0yz \
  --from dev \
  --keyring-backend test \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io

2. Get a list of holding information about all the stakers

You can query a list of holding information about all the stakers in the fiamma network.

fiammad query bitvmstaker all-staker-info \
  --chain-id <chain_id>  \
  --node <node>

Example

fiammad query bitvmstaker all-staker-info \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io

3. Remove a staker account by staker address

You can remove a staker account by staker address in the fiamma network.

fiammad tx bitvmstaker remove-staker \
  <staker_address> \
  --from <account_name> \
  --keyring-backend test \
  --chain-id <chain_id>  \
  --node <node>

Example

fiammad tx bitvmstaker remove-staker \
  fiammavaloper1f9t28umy70d8flvms23042ydyky7wvfmalf0yz \
  --from dev \
  --keyring-backend test \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io

4. Register a new verification key (VK)

You can Register a new verification key (VK) for a specific proof system by vk in the fiamma network.

fiammad tx bitvmstaker register-vk \
  <vk> \
  --from <account_name> \
  --keyring-backend test \
  --chain-id <chain_id>  \
  --node <node>

Example

: ${VK_FILE:=fiamma-network/fiamma/prover_examples/bitvm/vk.bitvm}

fiammad tx bitvmstaker register-vk \
  $VK_FILE \
  --from dev \
  --keyring-backend test \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io

5. Get a list of registered VKs

You can query a list of registered verification keys (VKs) in the fiamma network.

fiammad query bitvmstaker registered-vk-list \
  --chain-id <chain_id>  \
  --node <node>

Example

fiammad query bitvmstaker registered-vk-list \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io

6. Remove a registered verification key(VK)

You can remove a previously registered verification key (VK) for a specific proof system in the fiamma network.

fiammad tx bitvmstaker remove-vk \
  <vk> \
  --from <account_name> \
  --keyring-backend test \
  --chain-id <chain_id>  \
  --node <node>

Example

fiammad tx bitvmstaker remove-staker \
  $VK_FILE \
  --from dev \
  --keyring-backend test \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io

7. Update committee addresses

You can update the address of the committee responsible for overseeing the blockchain operations or specific proof systems in the fiamma network.

fiammad tx bitvmstaker update-committee-address \
  <committee_address> \
  --from <account_name> \
  --keyring-backend test \
  --chain-id <chain_id>  \
  --node <node>

Example

fiammad tx bitvmstaker update-committee-address \
  fiamma1f9t28umy70d8flvms23042ydyky7wvfmjpeuh9 \
  --from dev \
  --keyring-backend test \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io

8. Get the committee address

You can query the address associated with the committee responsible for overseeing certain operations or governance in the fiamma network.

fiammad query bitvmstaker committee-address \
  --chain-id <chain_id>  \
  --node <node>

Example

fiammad query bitvmstaker committee-address \
  --chain-id fiamma-testnet-1  \
  --node https://testnet-rpc.fiammachain.io
